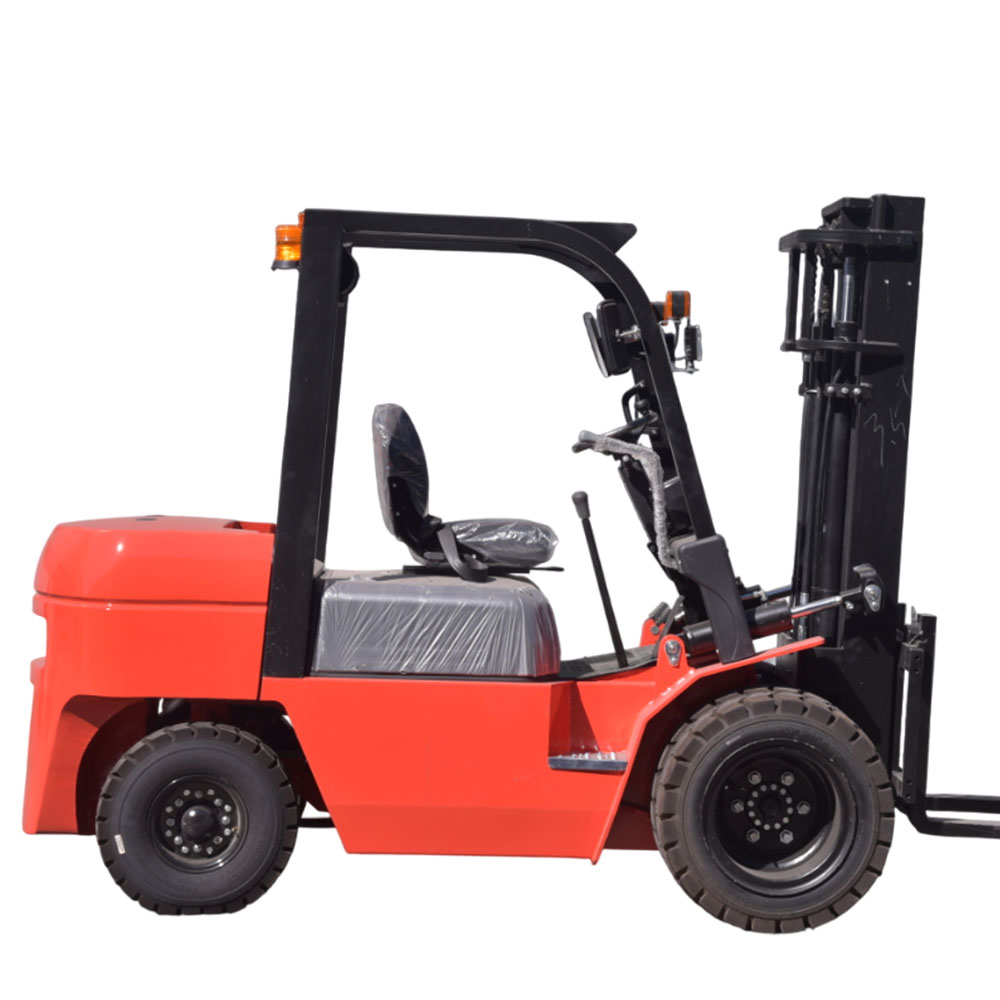

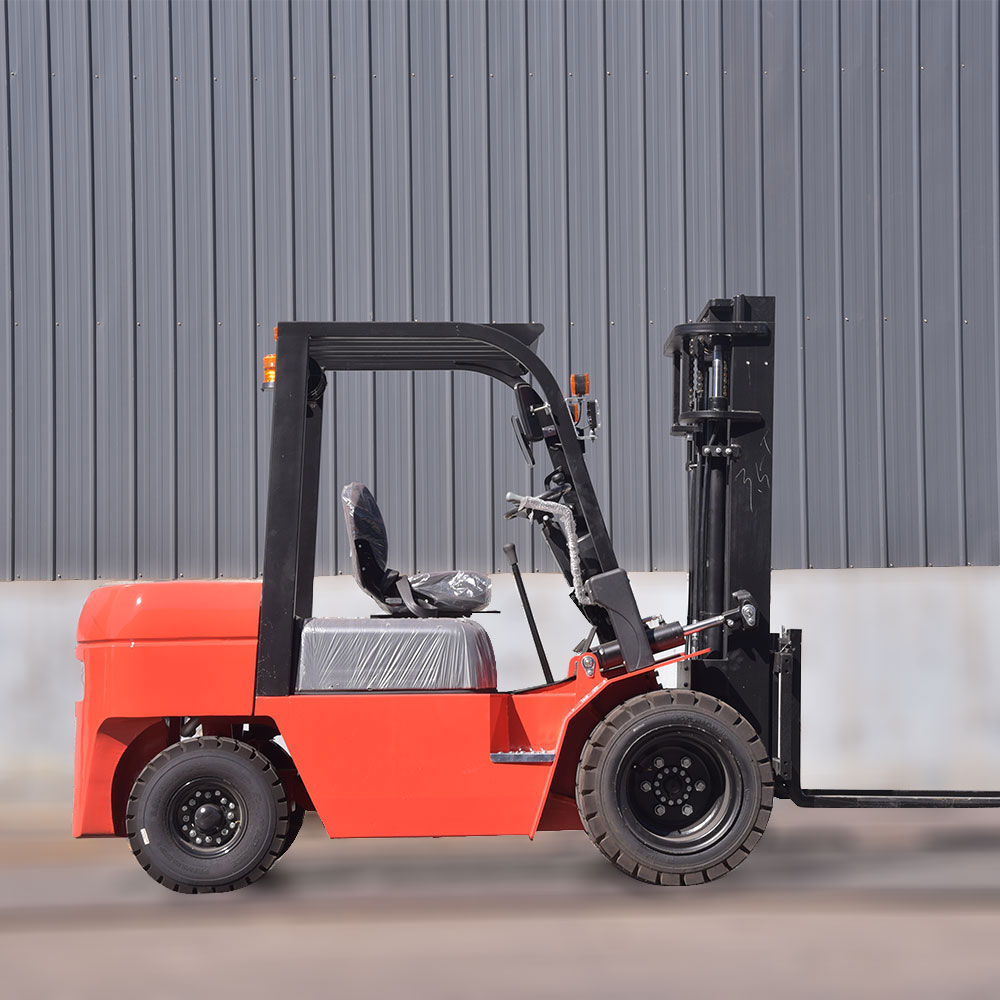

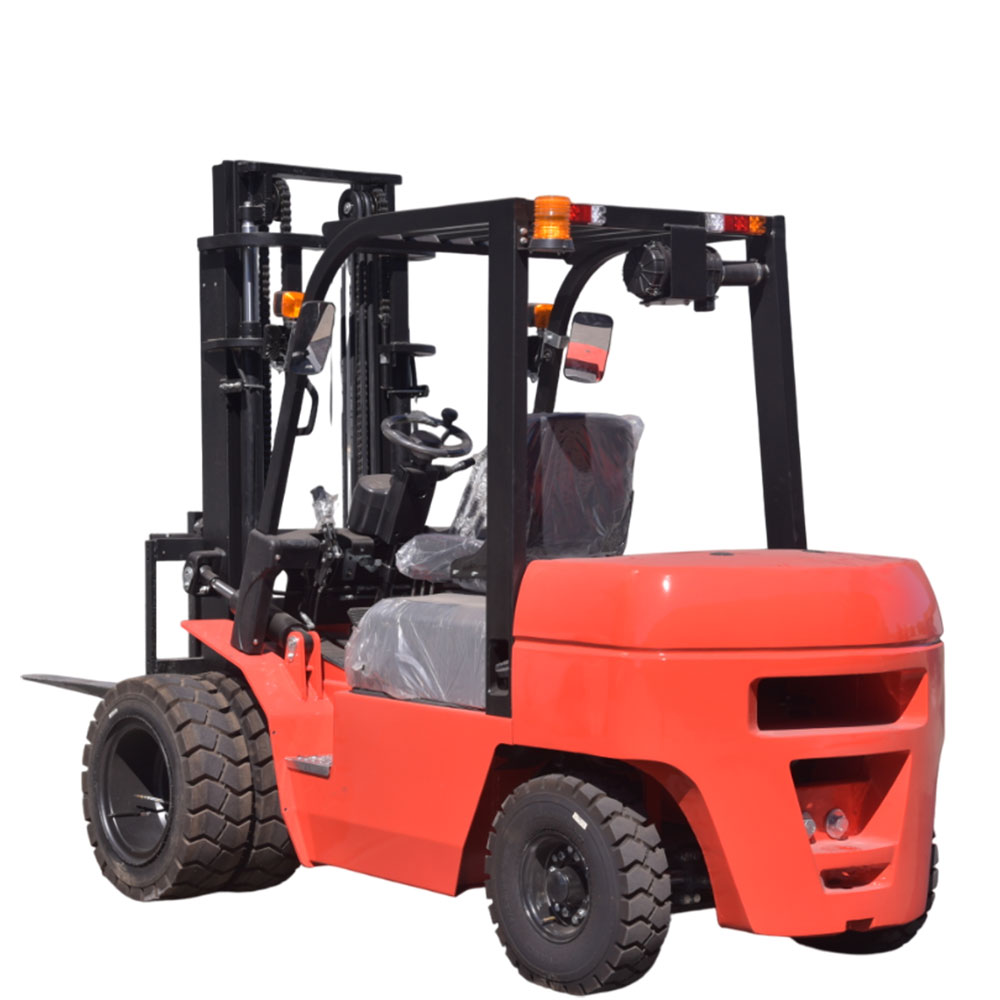

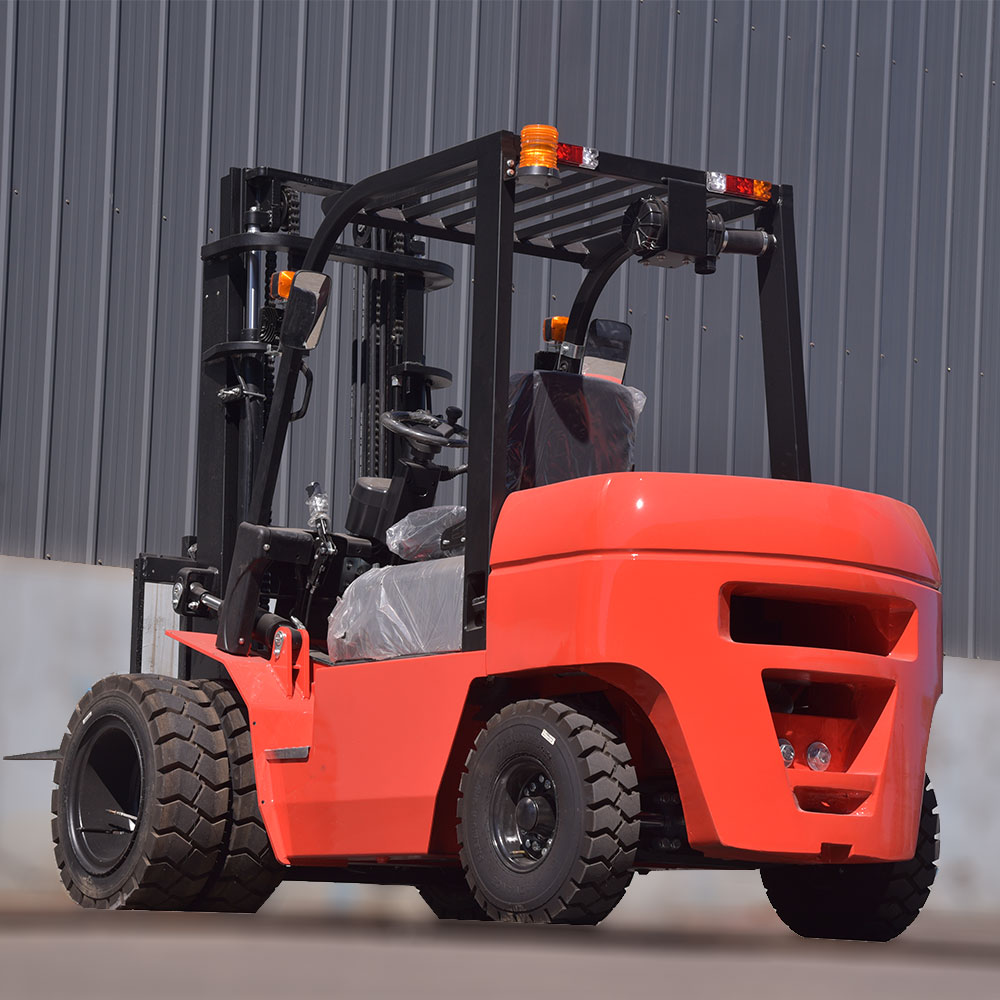

LGSlifter FD38 3.8ton Diesel Forklift for Sale

Model: FD30, FD35, FD40
Rated lifting load: 3.0 Ton-4.0Ton
Free lifting height: 100mm-150 mm
Power Engine: Diesel,Quanchai

The Diesel forklift, also known as fork truck, is a Diesel motor-driven industrial fork truck used for lifting and moving goods on a pallet within the premises of a warehouse, storage facilities and distribution centre.

It is avalibale for different industries using with LGSlifter Diesel Forklift.

LGSlifter forklifts have different loading capacity , FD30 is 3.0Ton,FD35 is 3.5 Ton,and FD38 is 3.8Ton.

1. Standard configuration LED energy-saving lamp, safety seat, wide vision mast, China Xinchai engine, IP56 protection grade electrical system, saving fuel and electricity.

2.The forklift is available with floating seats, a fully enclosed cab, air conditioning, heating.

And Japanese engines, American engines or any other engines that comply with US EPA emissions and EU standards are optional.

3.Diesel forklift used in factories, warehouses, stations, docks, airports, ports and other packaged goods Unloading and handling, when equipped with other working accessories, can also be used for bulk goods and other non-packaged goods Loading and unloading operations.

4.All the core parts of the forklift truck accept the warranty, no matter how long the use, can provide the replacement of the corresponding product accessories, accessories are complete, can be equipped with different forks and other industry requirements according to customer needs.

3-ton-Diesel-forklift
forklift

1.The engine is optional, according to the emission requirements of different countries. fully in line with international standards ISO and CE certification.

2.Narrow shape, conducive to entering the narrow aisle, turning radius is more flexible.

3.Full forklifts equipped with LED lights, longer lighting distance, longer use time.

4.LCD instrument panel design, full understanding of forklift conditions.

5.The engine fan is designed in, which is more convenient to improve fuel efficiency and accelerate air intake.

Model FD30FD35FD38
Rated lifting loadkg300035003800
Load center distancemm500
Free lifting heightmm160
overall length ( With fork/Without fork )mm3752/26823763/26933963/2893
Widthmm1225
Overhead guard heightmm2090
Wheelbasemm1700
Minimum ground clearancemm135
Mast tilt angle (front/rear)%6° /12°
Tire no. (before) 28x9-15-14PR
Tire no.(after) 6.5-10-10PR
Minimum turning radius (outer side)mm240024202710
Minimum right angle aisle widthmm426042604720
Fork sizemm1070x125x451070X125X501070X150X50
maximum working speed(Full-load/No-load )km/h18/1919/19
maximum lifting speed(Full-load/No-load )mm/s440/480330/370
maximum gradeability(Full-load/No-load )%15/20
Forklift weightkg425045004800
Engine model Quanchai4C2-50V32/Quanchai4C2-50C41
