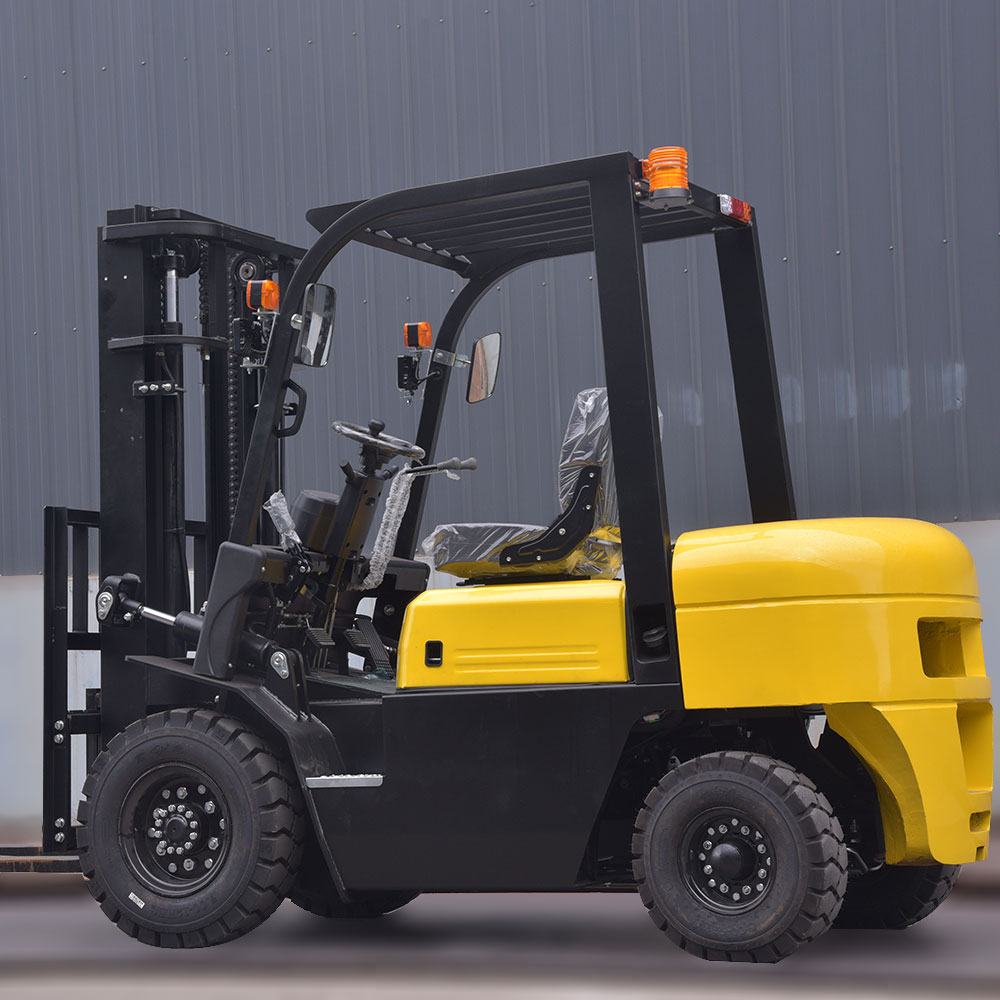

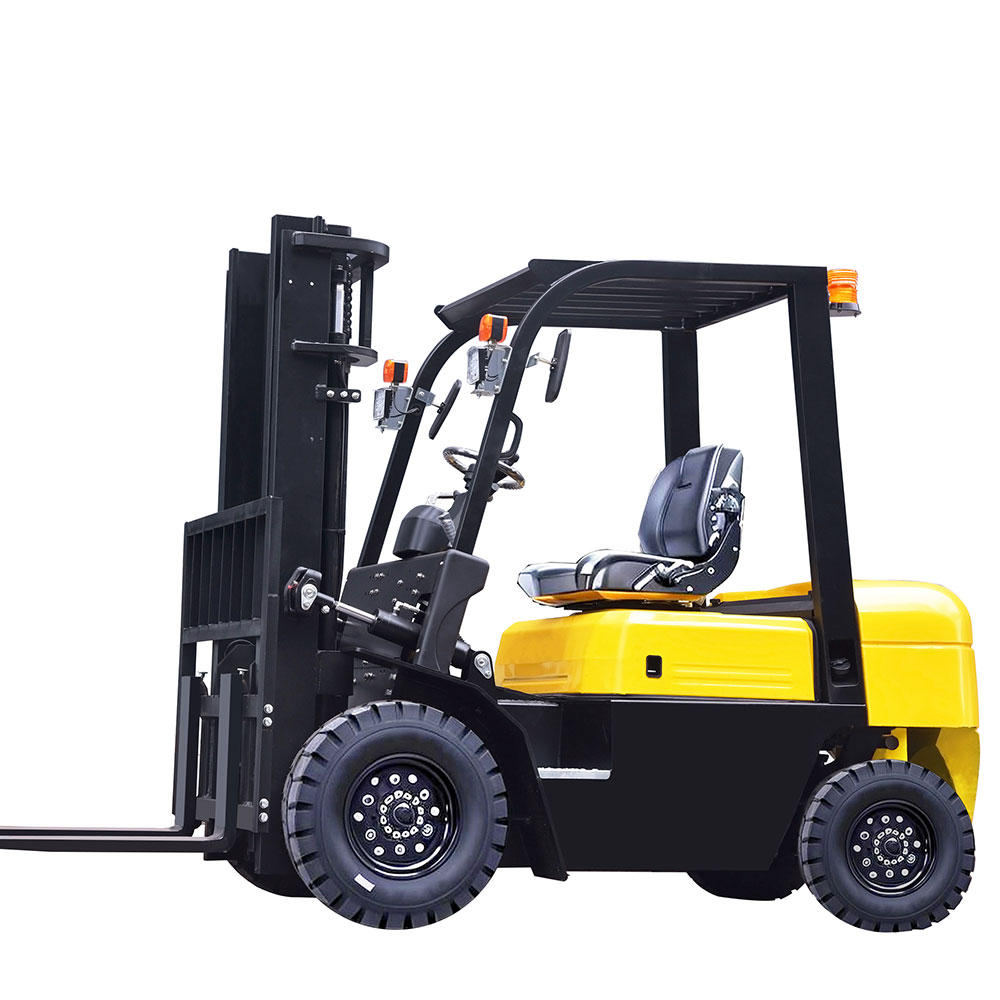

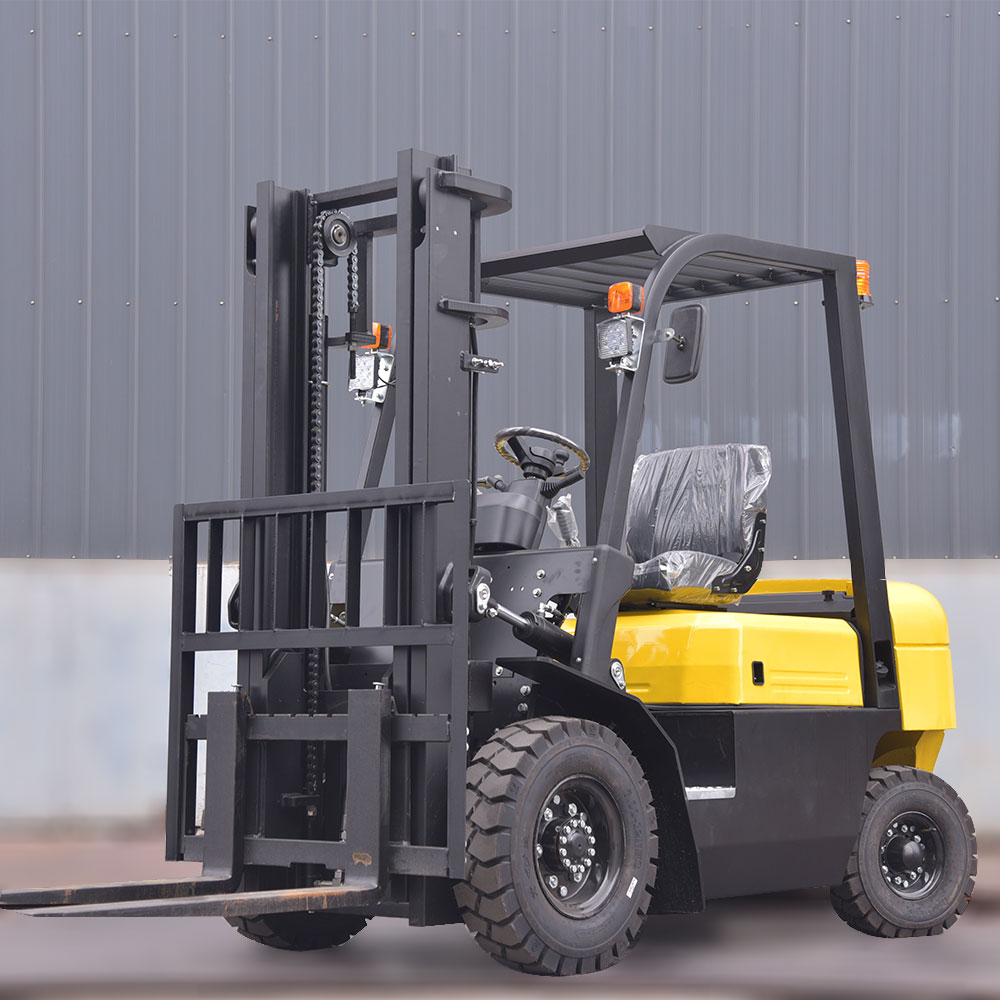

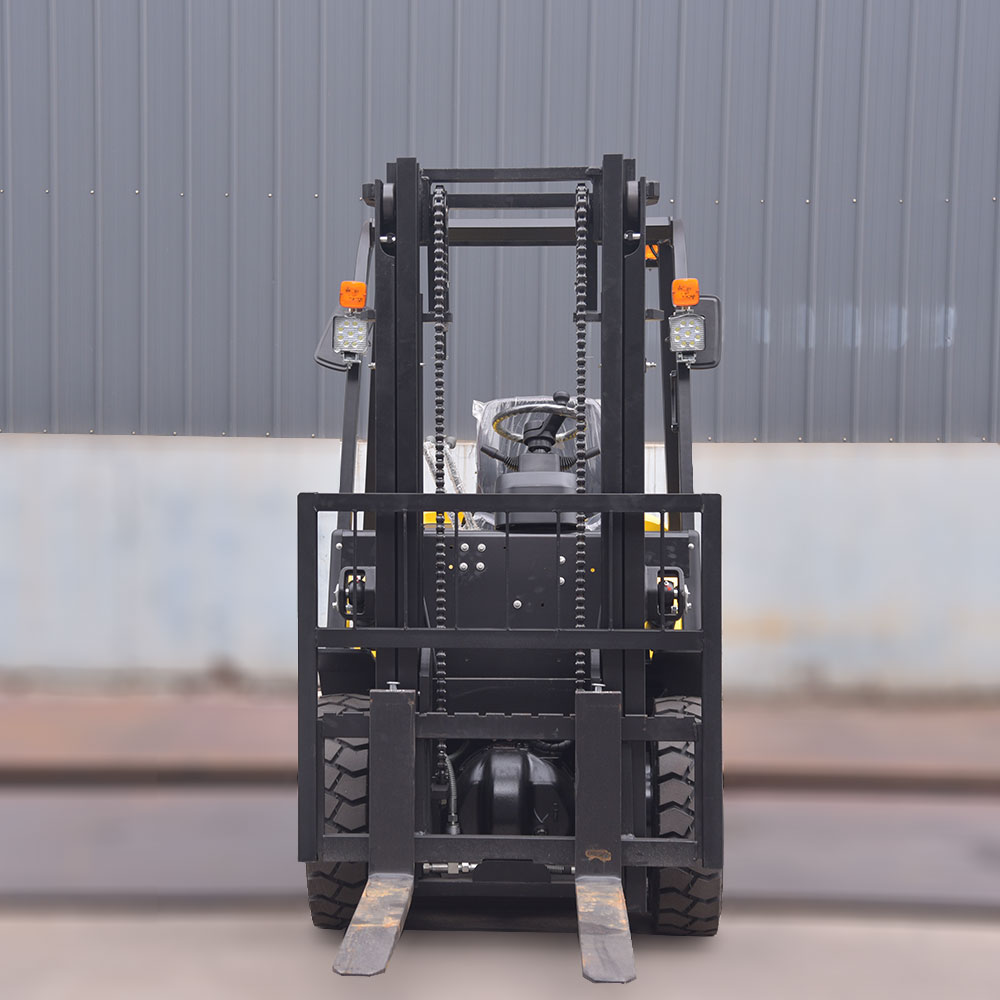

LGSlifter FD50 5.0ton Diesel Forklift for Sale

Model: FD50
Rated lifting load: 5.0 Ton
Free lifting height: 100mm-150 mm
Power Engine: Diesel,Quanchai

The Diesel forklift, also known as fork truck, is a Diesel motor-driven industrial fork truck used for lifting and moving goods on a pallet within the premises of a warehouse, storage facilities and distribution centre.

It is avalibale for different industries using with LGSlifter Diesel Forklift.

LGSlifter forklifts have different loading capacity , FD50is 5.0 Ton.

1. Standard configuration LED energy-saving lamp, safety seat, wide vision mast, China Xinchai engine, IP56 protection grade electrical system, saving fuel and electricity.

2.The forklift is available with floating seats, a fully enclosed cab, air conditioning, heating.

And Japanese engines, American engines or any other engines that comply with US EPA emissions and EU standards are optional.

3.Diesel forklift used in factories, warehouses, stations, docks, airports, ports and other packaged goods Unloading and handling, when equipped with other working accessories, can also be used for bulk goods and other non-packaged goods Loading and unloading operations.

4.All the core parts of the forklift truck accept the warranty, no matter how long the use, can provide the replacement of the corresponding product accessories, accessories are complete, can be equipped with different forks and other industry requirements according to customer needs.

5t forklift
forklift seats

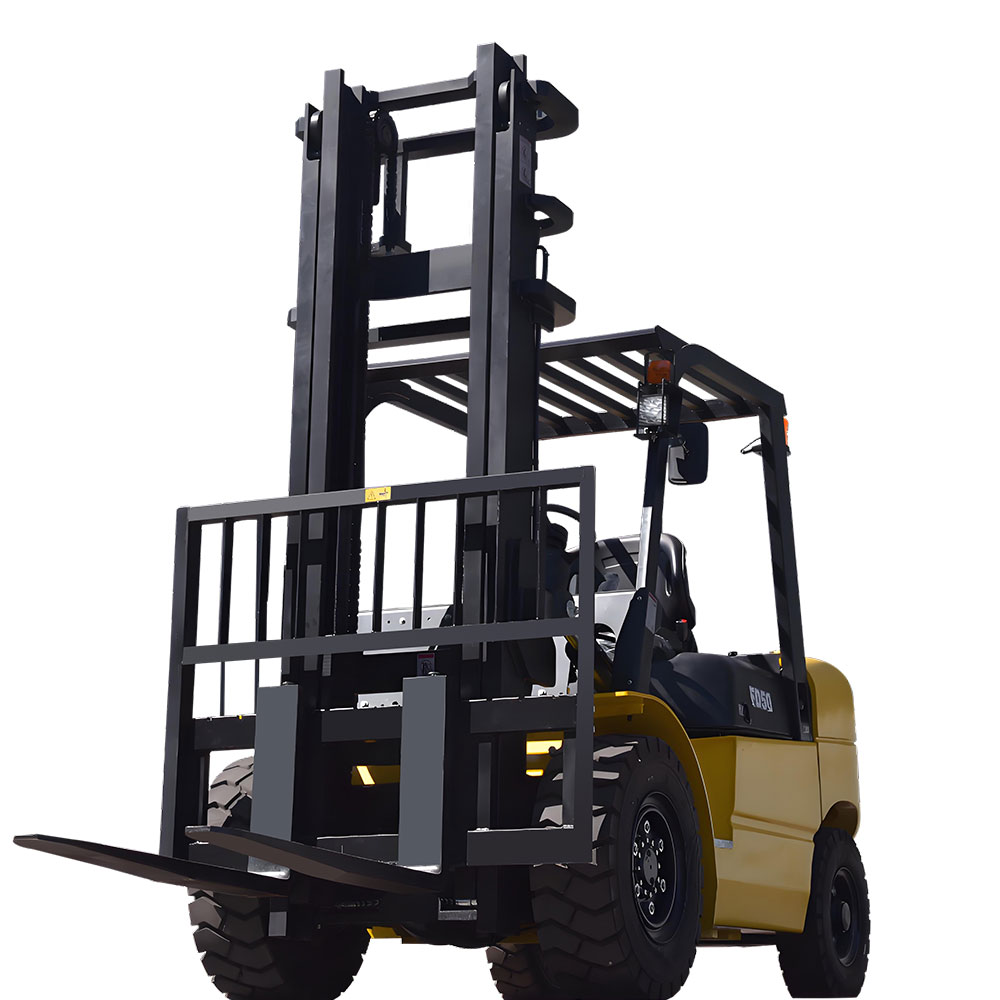

5t forklift 3mast

1.The engine is optional, according to the emission requirements of different countries. fully in line with international standards ISO and CE certification.

2.Narrow shape, conducive to entering the narrow aisle, turning radius is more flexible.

3.Full forklifts equipped with LED lights, longer lighting distance, longer use time.

4.LCD instrument panel design, full understanding of forklift conditions.

5.The engine fan is designed in, which is more convenient to improve fuel efficiency and accelerate air intake.

Model FD50FD60FD70
Rated lifting loadkg500060007000
Load center distancemm600
Free lifting heightmm210
overall length ( With fork/Without fork )mm4690/35104720/35904810/3680
Widthmm1970
Overhead guard heightmm2500
Wheelbasemm2250
Minimum ground clearancemm230
Mast tilt angle (front/rear)%6° /12°
Tire no. (before) 8.25-15-14PR
Tire no.(after) 8.25-15-14PR
Minimum turning radius (outer side)mm408041204180
Minimum right angle aisle widthmm523052905360
Fork sizemm1220x150x601220X150X65
maximum working speed(Full-load/No-load )km/h24/2923/2922/29
maximum lifting speed(Full-load/No-load )mm/s510/530500/530500/480
maximum gradeability(Full-load/No-load )% 15/20
Forklift weightkg840089009600
Engine model Quanchai4J1-115C32
