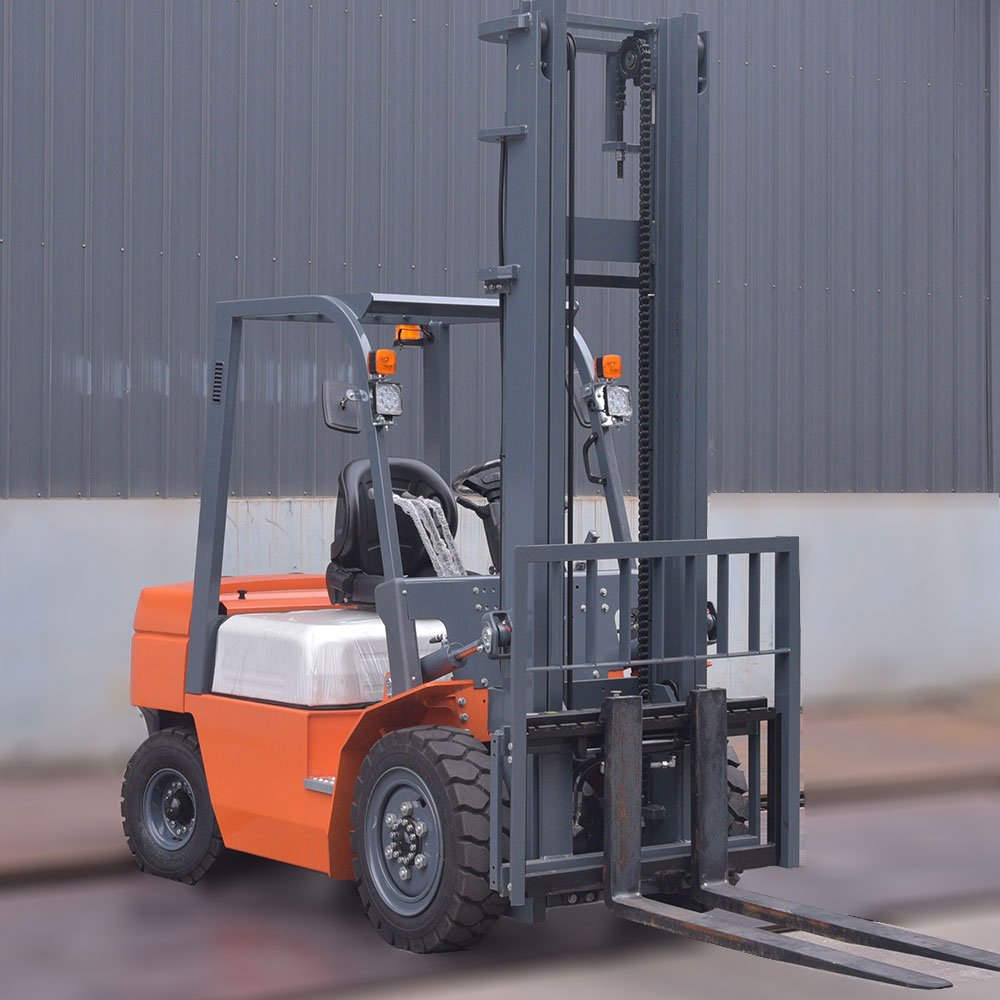

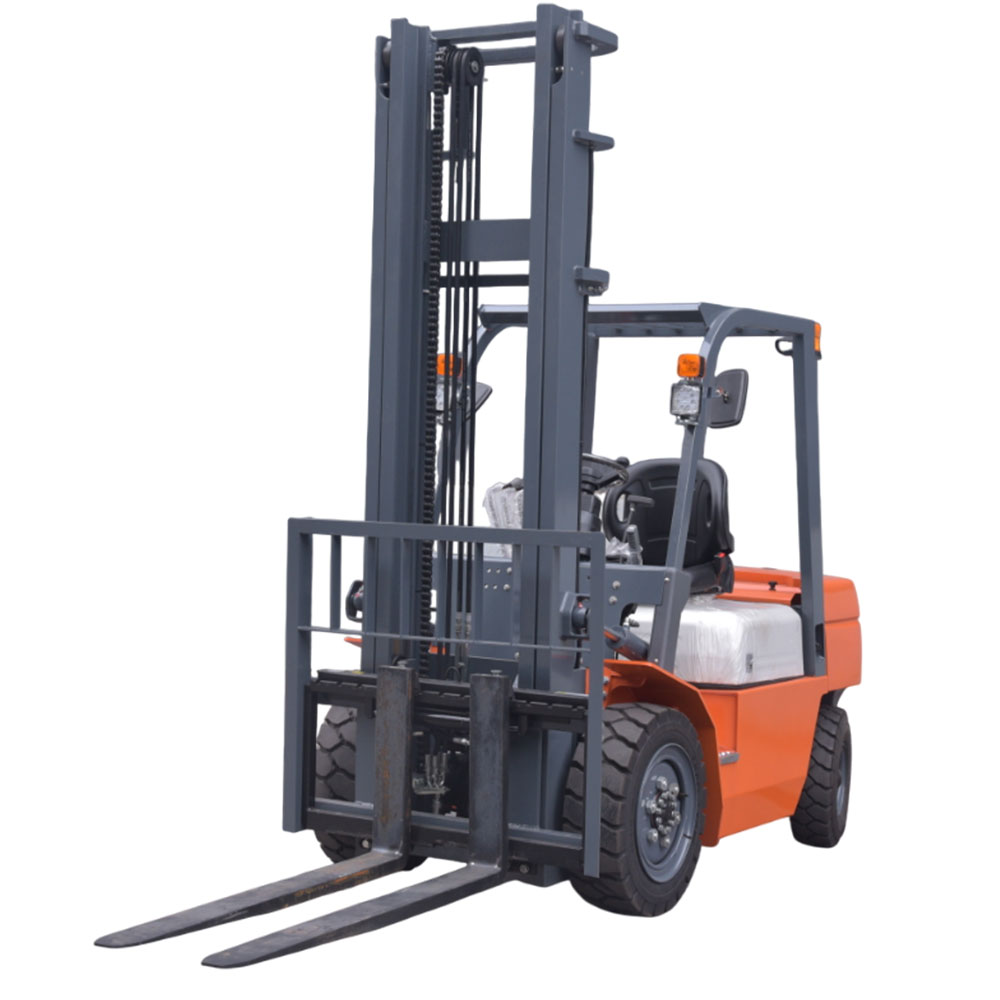

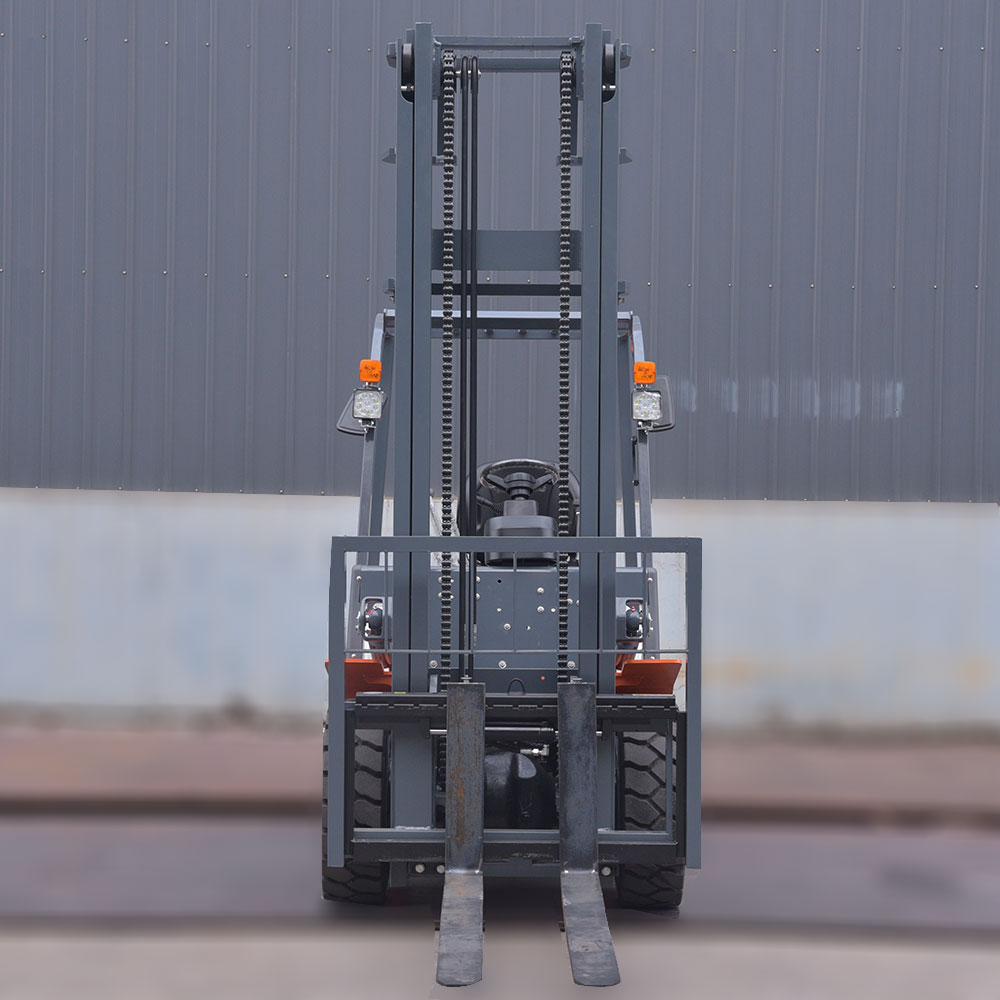

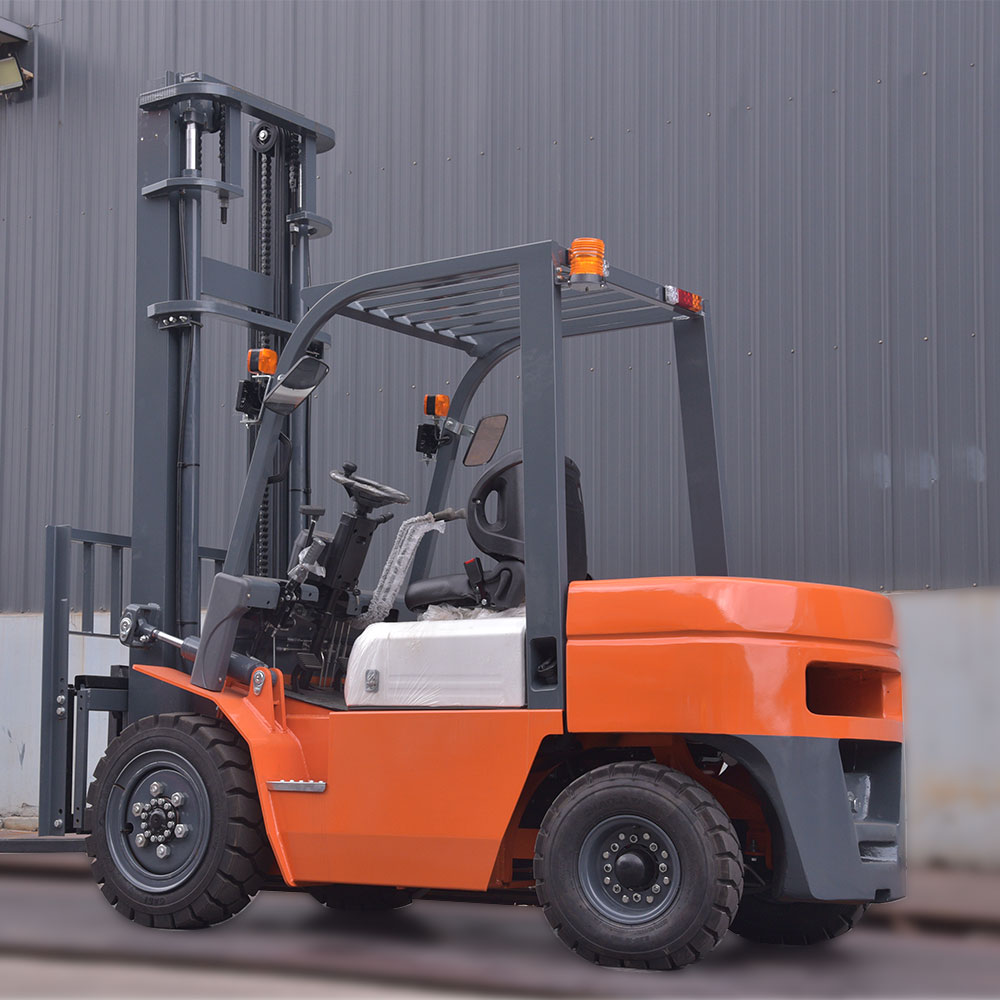

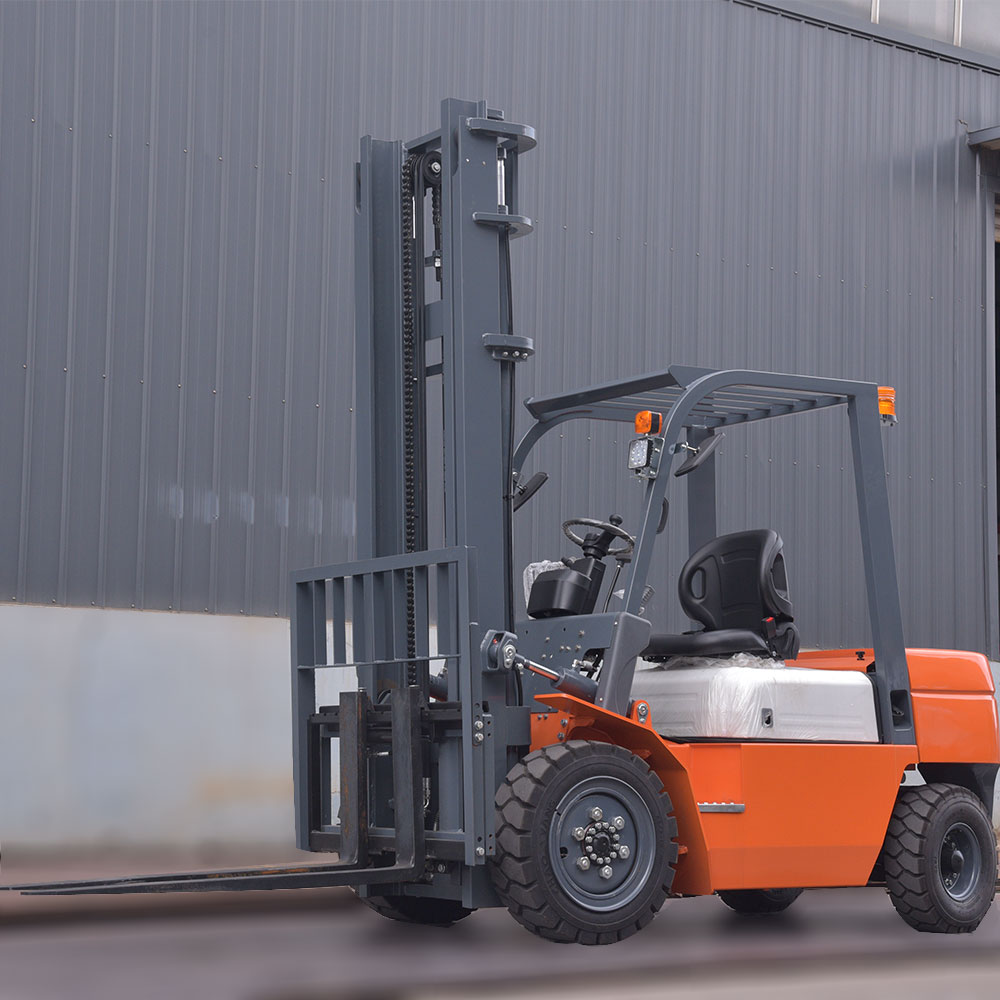

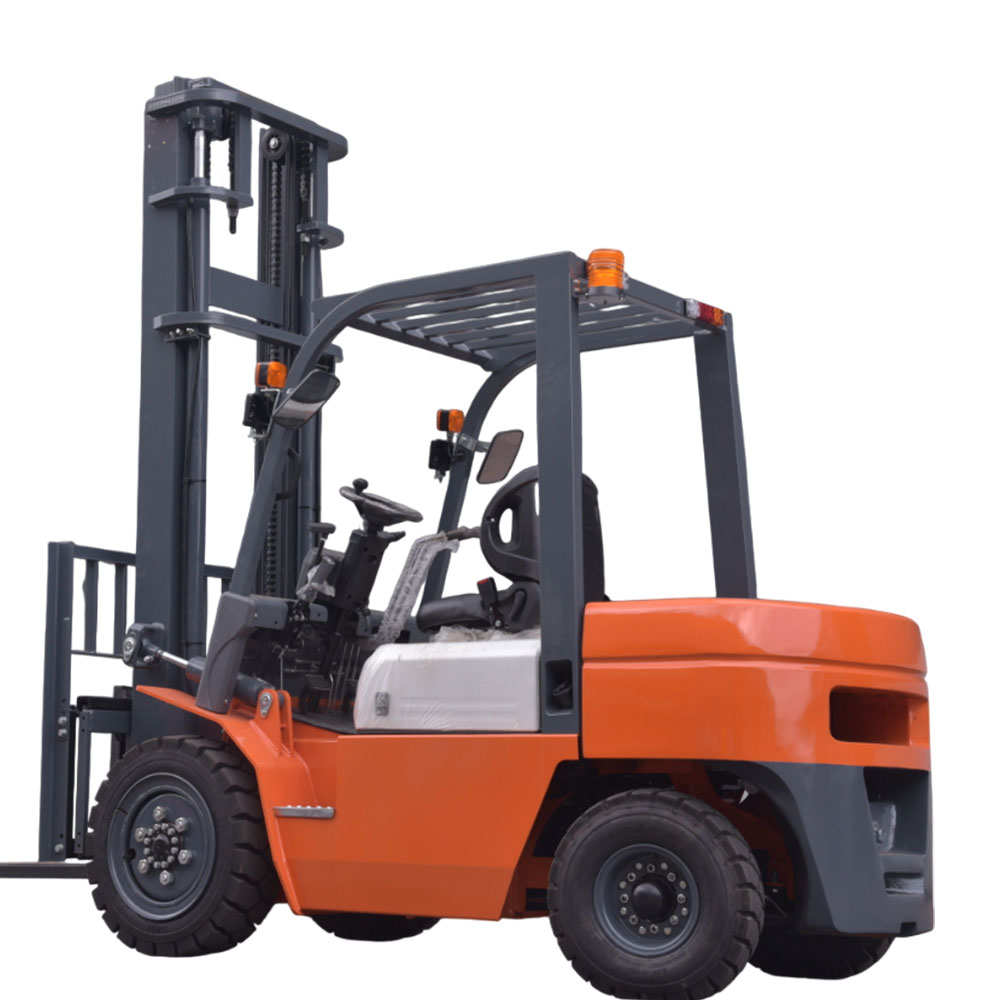

LGSlifter FD25 2.5ton Diesel Forklift for Sale

Modelo: FD15, FD20, FD25
Rated lifting load: 1.5 Ton-2.5 Ton
Free lifting height: 100mm-150 mm
Power Engine: Diesel,Quanchai

The Diesel forklift, also known as fork truck, is a Diesel motor-driven industrial fork truck used for lifting and moving goods on a pallet within the premises of a warehouse, storage facilities and distribution centre.

It is avalibale for different industries using with LGSlifter Carretilla elevadora diésel.

LGS montacargas have different loading capacity , FD15 is 1.5 Ton,FD20 is 2.0 Ton,and FD25 is 2.5 Ton.

1. Standard configuration LED energy-saving lamp, safety seat, wide vision mast, China Xinchai engine, IP56 protection grade electrical system, saving fuel and electricity.

2.The forklift is available with floating seats, a fully enclosed cab, air conditioning, heating.

And Japanese engines, American engines or any other engines that comply with US EPA emissions and EU standards are optional.

3.Diesel forklift used in factories, warehouses, stations, docks, airports, ports and other packaged goods Unloading and handling, when equipped with other working accessories, can also be used for bulk goods and other non-packaged goods Loading and unloading operations.

4.All the core parts of the forklift truck accept the warranty, no matter how long the use, can provide the replacement of the corresponding product accessories, accessories are complete, can be equipped with different forks and other industry requirements according to customer needs.

forklift seats

1.The engine is optional, according to the emission requirements of different countries. fully in line with international standards ISO and CE certification.

2.Narrow shape, conducive to entering the narrow aisle, turning radius is more flexible.

3.Full montacargas equipped with LED lights, longer lighting distance, longer use time.

4.LCD instrument panel design, full understanding of forklift conditions.

5.The engine fan is designed in, which is more convenient to improve fuel efficiency and accelerate air intake.

ModeloFD15FD20FD25
Rated lifting loadkg150020002500
Load center distancemm500
Free lifting heightmm100150
overall length ( With fork/Without fork )mm3180/22603422/25023646/2576
Widthmm10901170
Overhead guard heightmm20502070
Wheelbasemm14001600
Minimum ground clearancemm110
Mast tilt angle (front/rear)%6° /12
Tire no. (before)6.5-10-10PR7.00x12-12PR
Tire no.(after)5.00-8-10PR6.00x9-10PR
Minimum turning radius (outer side)mm195021702240
Minimum right angle aisle widthmm363039003970
Fork sizemm920x100x351070X100X45
maximum working speed(Full-load/No-load )km/h14/1517119
maximum lifting speed(Full-load/No-load )mm/s500/480530/550
maximum gradeability(Full-load/No-load )%20/21
Forklift weightkg290033203680
Engine modelQuanchai/B02-082Quanchai4C2-50V32/Quanchai4C2-50C41
