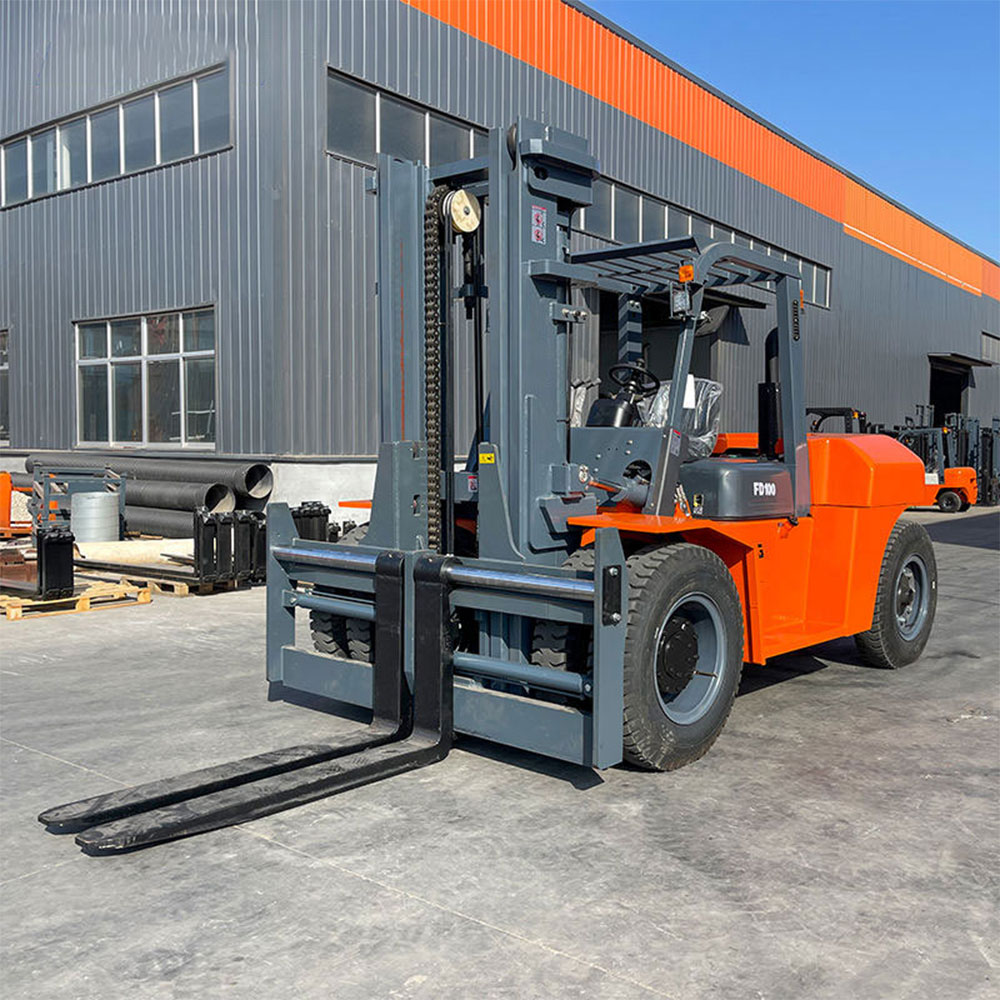

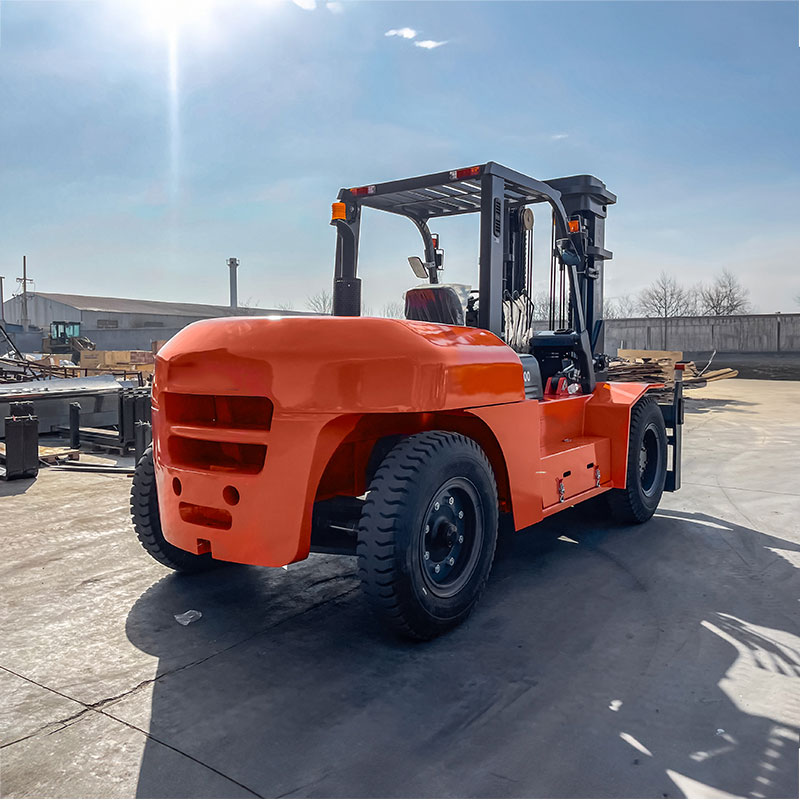

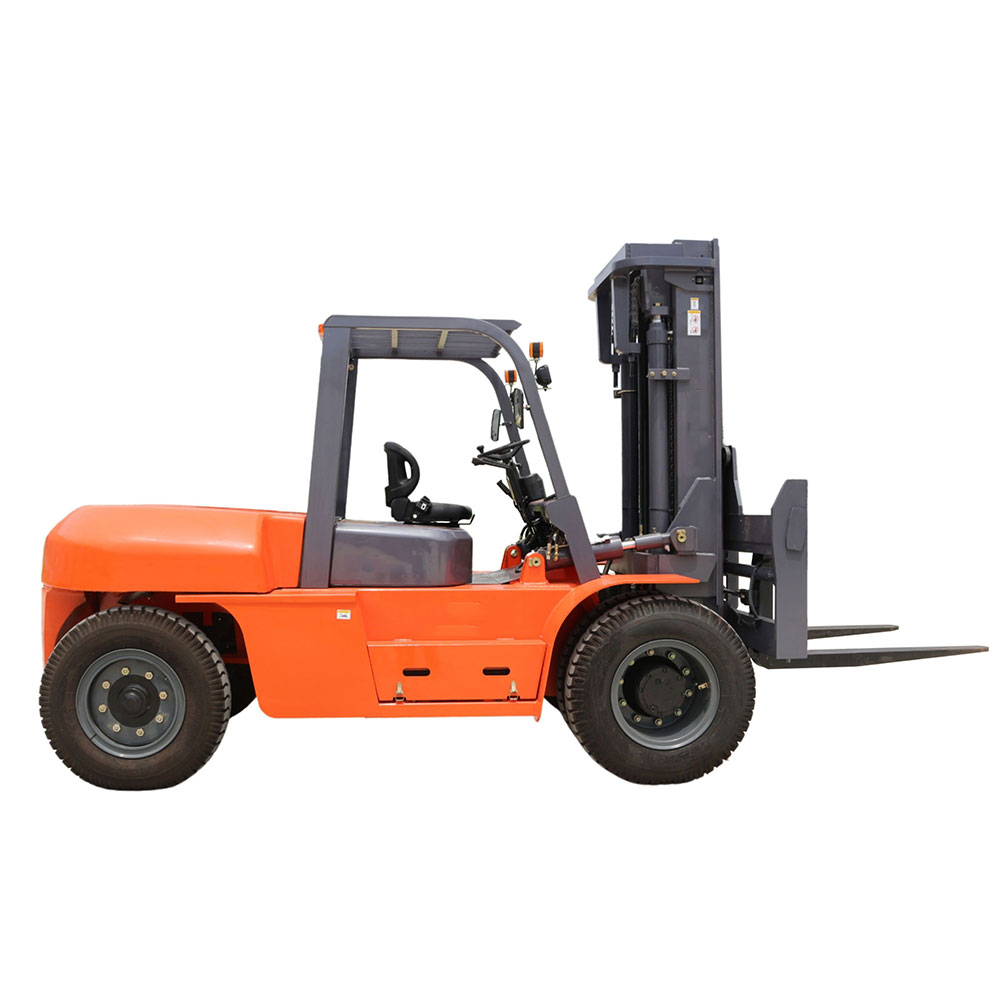

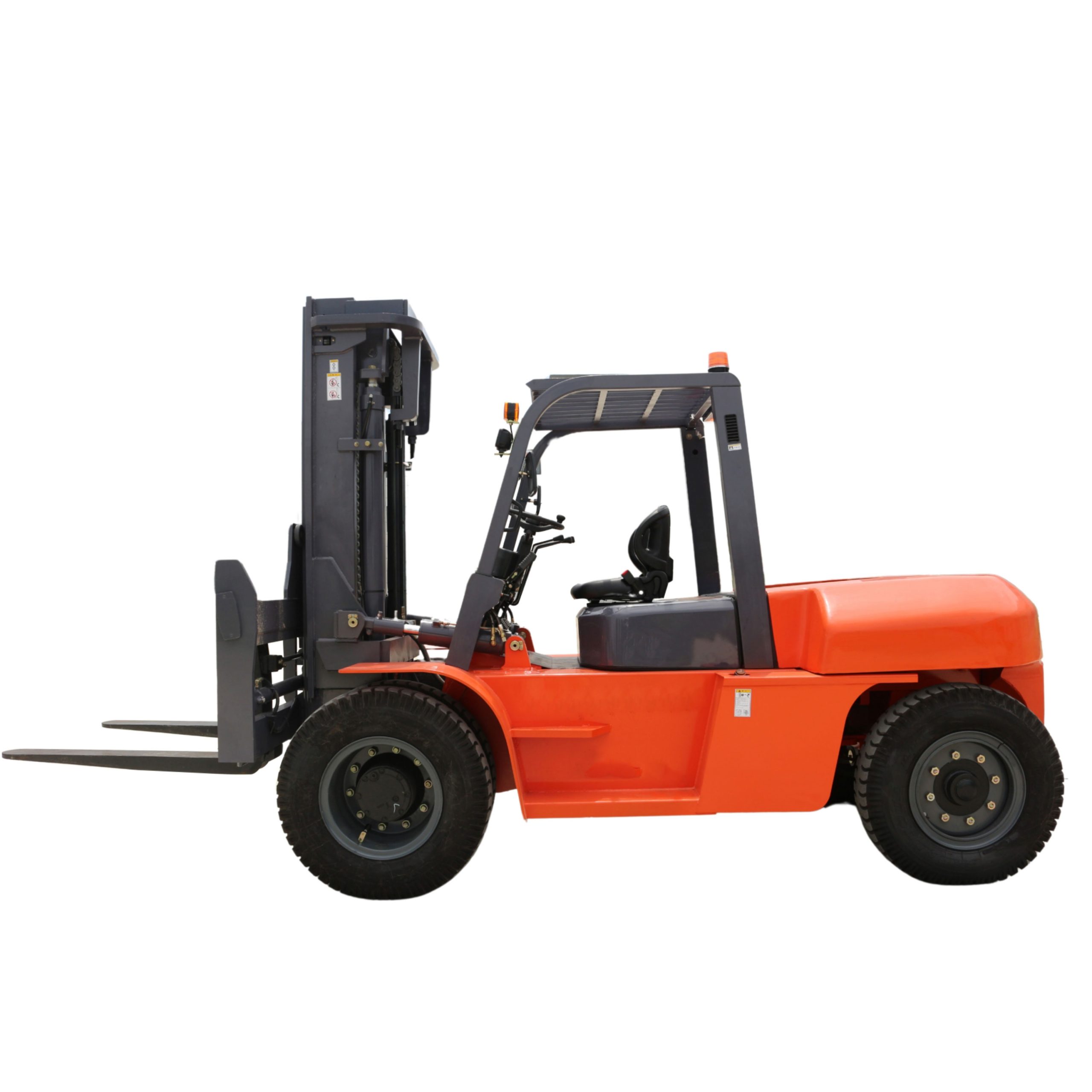

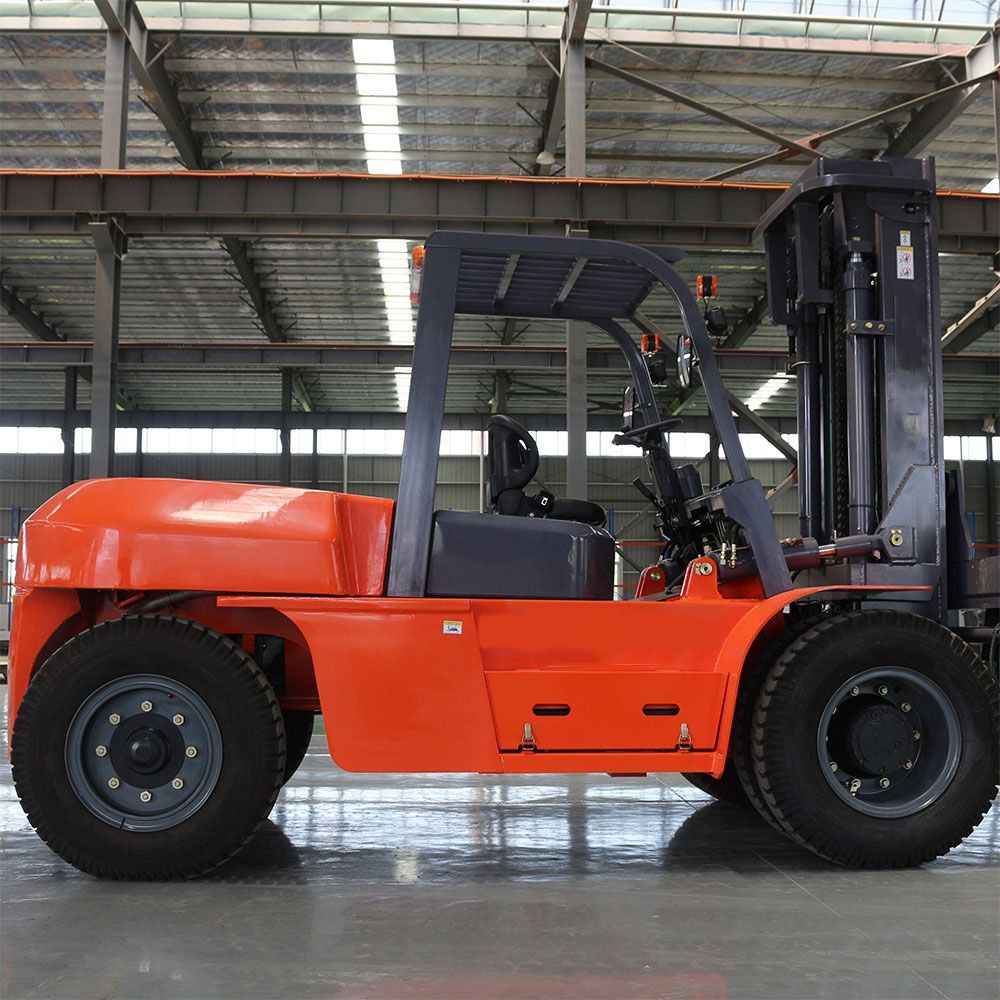

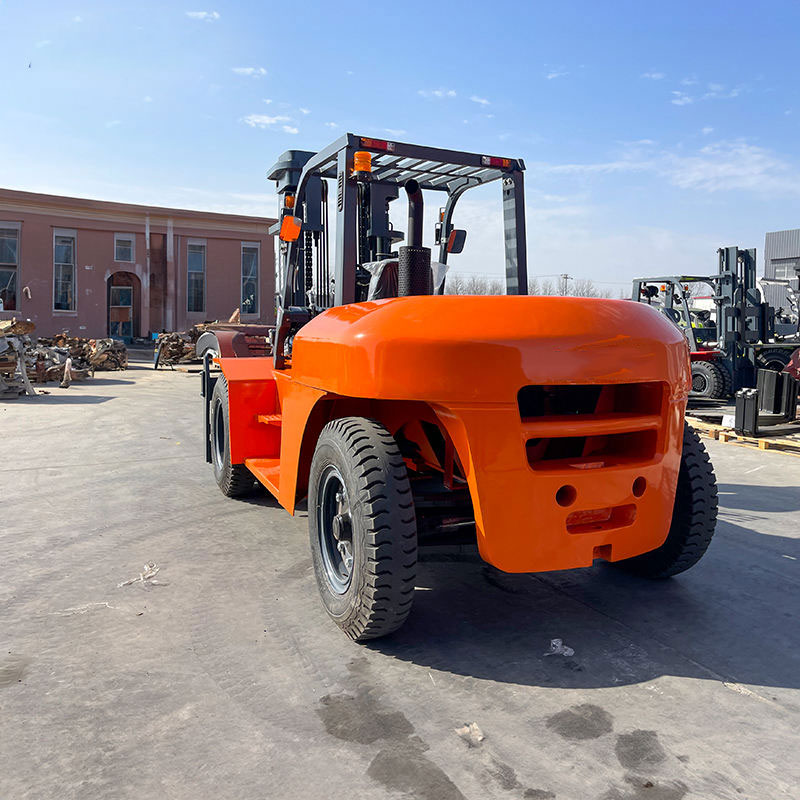

LGSlifter FD100 10ton Diesel Forklift for Sale
Modelo: FD100
Rated lifting load: 10.0Ton
Free lifting height: 100mm-150 mm
Power Engine: Diesel,Quanchai
- Product Descriptions
The Diesel forklift, also known as fork truck, is a Diesel motor-driven industrial fork truck used for lifting and moving goods on a pallet within the premises of a warehouse, storage facilities and distribution centre.
It is avalibale for different industries using with LGSlifter Carretilla elevadora diésel.
LGSlifter montacargas have different loading capacity , FD80 is 8.0 Ton,FD100 is 10.0 Ton.
1. Standard configuration LED energy-saving lamp, safety seat, wide vision mast, China Xinchai engine, IP56 protection grade electrical system, saving fuel and electricity.
2.The forklift is available with floating seats, a fully enclosed cab, air conditioning, heating.
And Japanese engines, American engines or any other engines that comply with US EPA emissions and EU standards are optional.
3.Diesel forklift used in factories, warehouses, stations, docks, airports, ports and other packaged goods Unloading and handling, when equipped with other working accessories, can also be used for bulk goods and other non-packaged goods Loading and unloading operations.
4.All the core parts of the forklift truck accept the warranty, no matter how long the use, can provide the replacement of the corresponding product accessories, accessories are complete, can be equipped with different forks and other industry requirements according to customer needs.
- Products Features
1.The engine is optional, according to the emission requirements of different countries. fully in line with international standards ISO and CE certification.
2.Narrow shape, conducive to entering the narrow aisle, turning radius is more flexible.
3.Full montacargas equipped with LED lights, longer lighting distance, longer use time.
4.LCD instrument panel design, full understanding of forklift conditions.
5.The engine fan is designed in, which is more convenient to improve fuel efficiency and accelerate air intake.
- Product Specifications
Modelo | FD80 | FD100 | |
Rated lifting load | kg | 8000 | 1000 |
Load center distance | mm | 600 | |
Free lifting height | mm | 200 | |
overall length ( With fork/Without fork ) | mm | 5175/3955 | 5497/4277 |
Width | mm | 2245 | |
Overhead guard height | mm | 2570 | |
Wheelbase | mm | 2800 | |
Minimum ground clearance | mm | 250 | |
Mast tilt angle (front/rear) | % | 10° /12° | |
Tire no. (before) | 9.00-20NHS | ||
Tire no.(after) | 9.00-20NHS | ||
Minimum turning radius (outer side) | mm | 3755 | 4150 |
Minimum right angle aisle width | mm | 5755 | 6010 |
Fork size | mm | 1520x170x70 | 1520X175X85 |
maximum working speed(Full-load/No-load ) | km/h | 20/26 | |
maximum lifting speed(Full-load/No-load ) | mm/s | 330/350 | |
maximum gradeability(Full-load/No-load ) | % | 15/20 | |
Forklift weight | kg | 11800 | 12410 |
Engine model | Quanchai4J1-115C32 |
